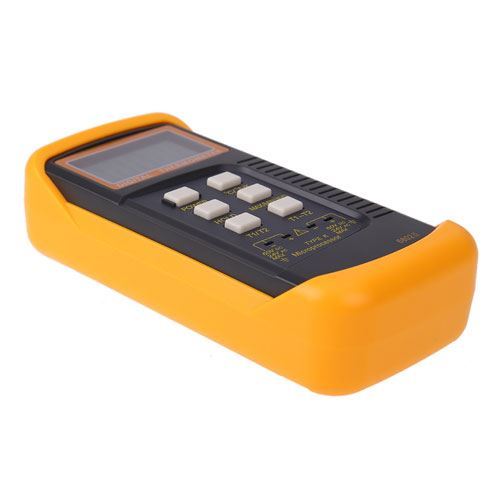

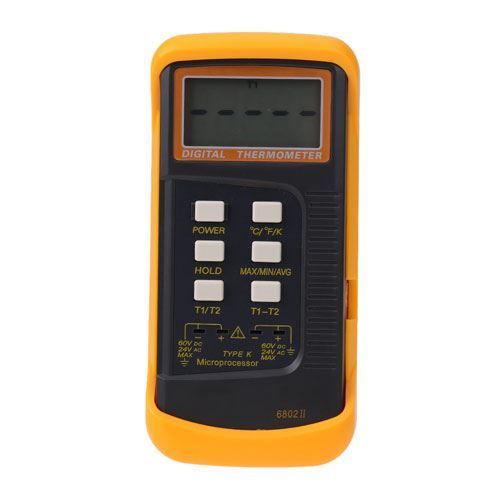

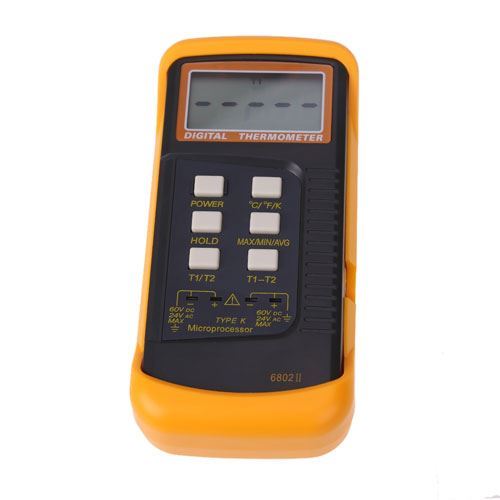

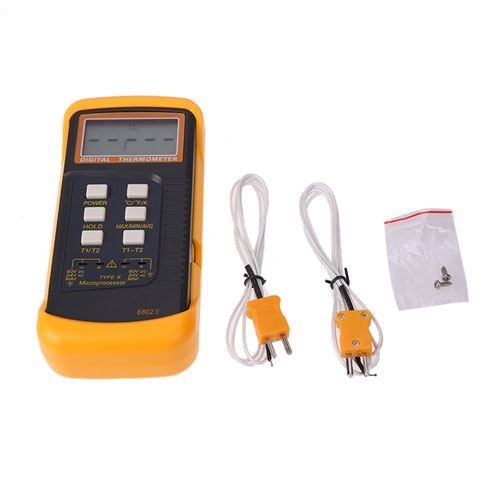

Digital Pyrometer

SKU: KP-CC-PYRO
More than 12 available
$29.30

Features:

  • 5 digits Large LCD display
  • High Resolution
  • User Calibration of Temperature
  • Low battery indication
  • Data Hold function mode
  • Maximum (MAX), Minimum (MIN) and Average Temperature Measurement (AVG)
  • 2 channel temperature measurement (T1 & T2)
  • Differential Temperature Measurement (T1 - T2)
  • Switchable between °C, °F & K

Specifications:

  • Temperature range: -50 ~ 1300 °C (-58 ~ 2372 °F)
  • Accuracy: ±0.1 °C ± 0.4
  • Operating Temperature: 0 ~ 40 °C (32 ~ 104 °F)
  • Operating Humidity: 0 ~ 70 % (R.H.)
  • Power current: One K-type: approx DC 2.8mA(typical) / Two K-type: approx. DC 3mA(typical)
  • Celsius and Fahrenheit selectable
  • Input protection: 60V DC or 24V AC maximum input voltage on any combination input pins
  • Reading rate: 2.5 times per second
  • Input connector: accept standard miniature thermocouple connectors
  • Power supply: 1 x 6F22 9V Battery(Not included)
  • Product Size: approx. 150*75*35mm
  • Package size: approx. 160*100*50mm
  • Net weight: approx. 191g
  • Gross weight: approx. 247g
